Sensor Accelerometer Gyroscope Magnetometer MPU-9250

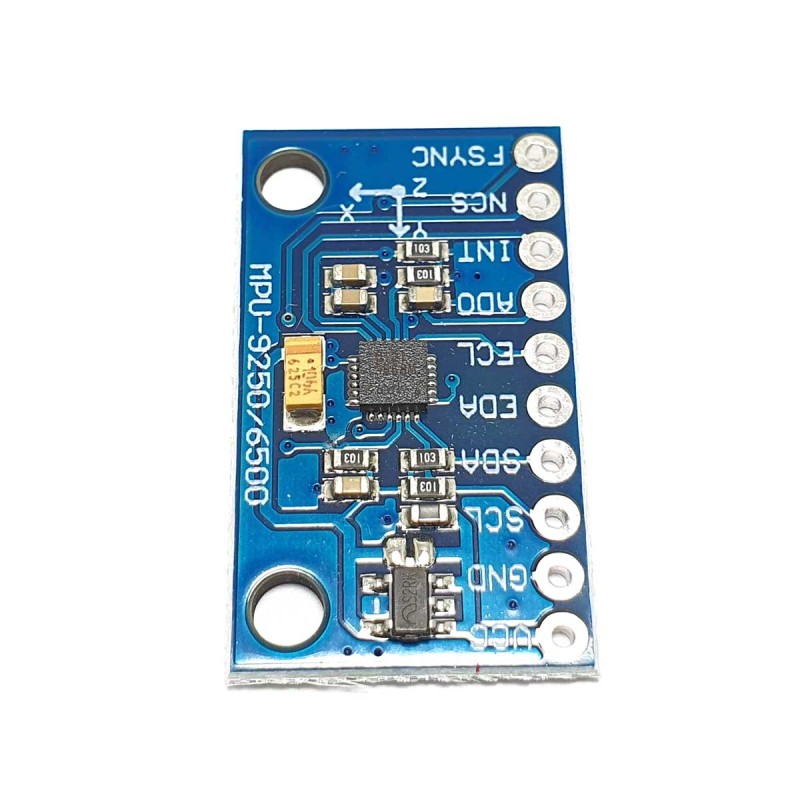

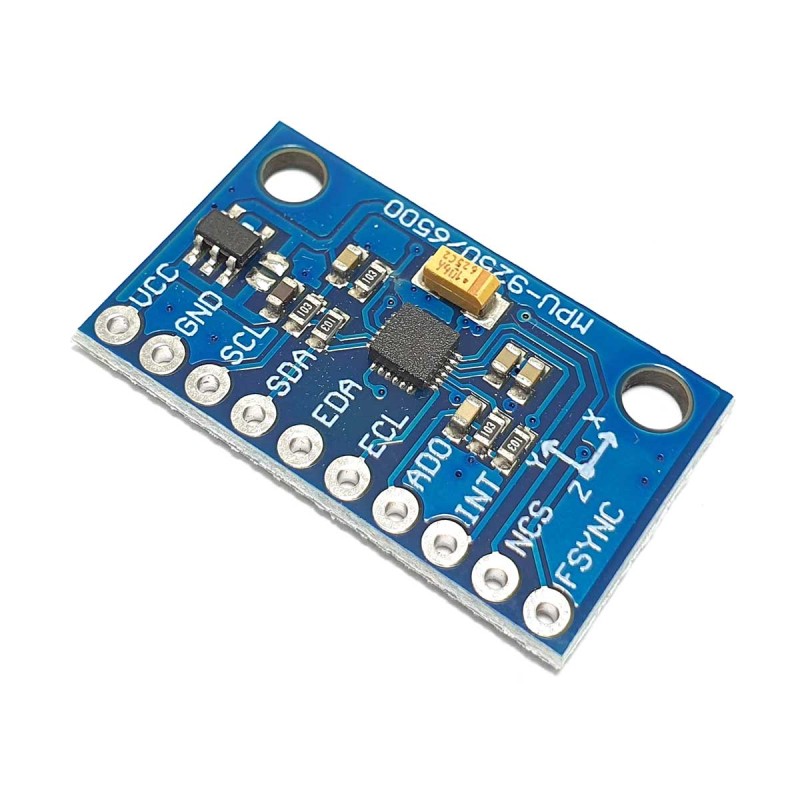

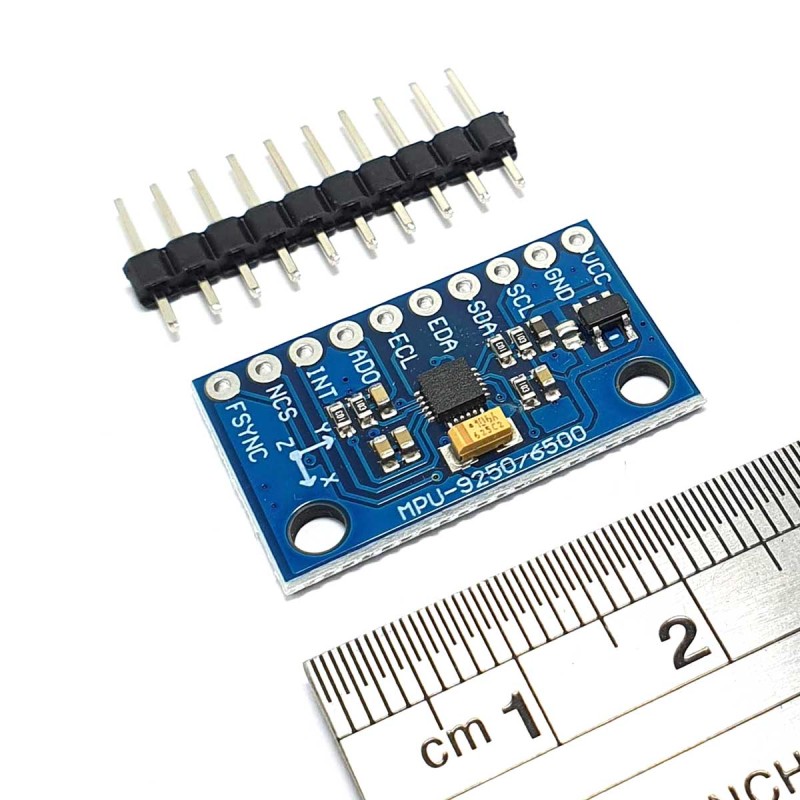

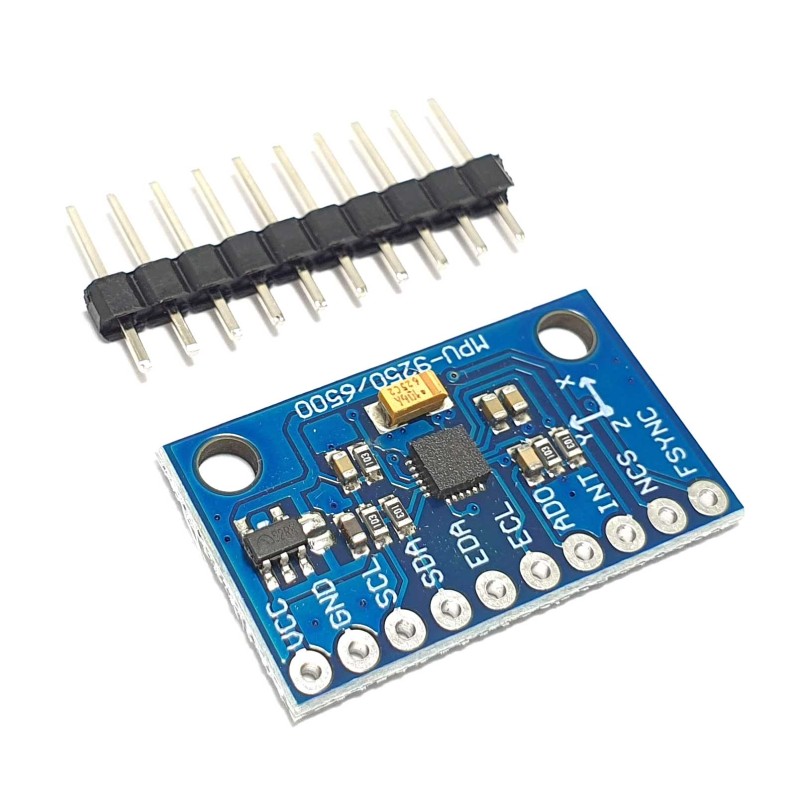

Modul MPU-9250 GY-9250 ini memiliki multi chip sehingga dapat berfungsi untuk accelerometer, gyroscope, dan magnetometer

• Auxiliary master I2C bus for reading data from external sensors (e.g. pressure sensor)
• 3.5mA operating current when all 9 motion sensing axes and the DMP are enabled
• VDD supply voltage range of 2.4 – 3.6V
• VDDIO reference voltage for auxiliary I2C devices
• Smallest and thinnest QFN package for portable devices: 3x3x1mm
• Minimal cross-axis sensitivity between the accelerometer, gyroscope and magnetometer axes
• 512 byte FIFO buffer enables the applications processor to read the data in bursts
• Digital-output temperature sensor User-programmable digital filters for gyroscope, accelerometer, and temp sensor
• 10,000 g shock tolerant
• 400kHz Fast Mode I2C for communicating with all registers
• 1MHz SPI serial interface for communicating with all registers

Gyroscope Features :

• Digital-output X-, Y-, and Z-Axis angular rate sensors (gyroscopes) with a user-programmable full scale range of ±250, ±500, ±1000, and ±2000°/sec and integrated 16-bit ADCs
• Digitally-programmable low-pass filter
• Gyroscope operating current: 3.2mA
• Sleep mode current: 8µA
• Factory calibrated sensitivity scale factor
• Self-test

Accelerometer Features :

• Digital-output triple-axis accelerometer with a programmable full scale range of ±2g, ±4g, ±8g and±16g and integrated 16-bit ADCs
• Accelerometer normal operating current: 450µA
• Low power accelerometer mode current: 8.4µA at 0.98Hz, 19.8µA at 31.25Hz
• Sleep mode current: 8µA
• User-programmable interrupts
• Wake-on-motion interrupt for low power operation of applications processor
• Self-test

Magnetometer Features

• 3-axis silicon monolithic Hall-effect magnetic sensor with magnetic concentrator
• Wide dynamic measurement range and high resolution with lower current consumption
• Output data resolution of 14 bit (0.6µT/LSB)
• Full scale measurement range is ±4800µT
• Magnetometer normal operating current: 280µA at 8Hz repetition rate
• Self-test function with internal magnetic source to confirm magnetic sensor operation on end products
