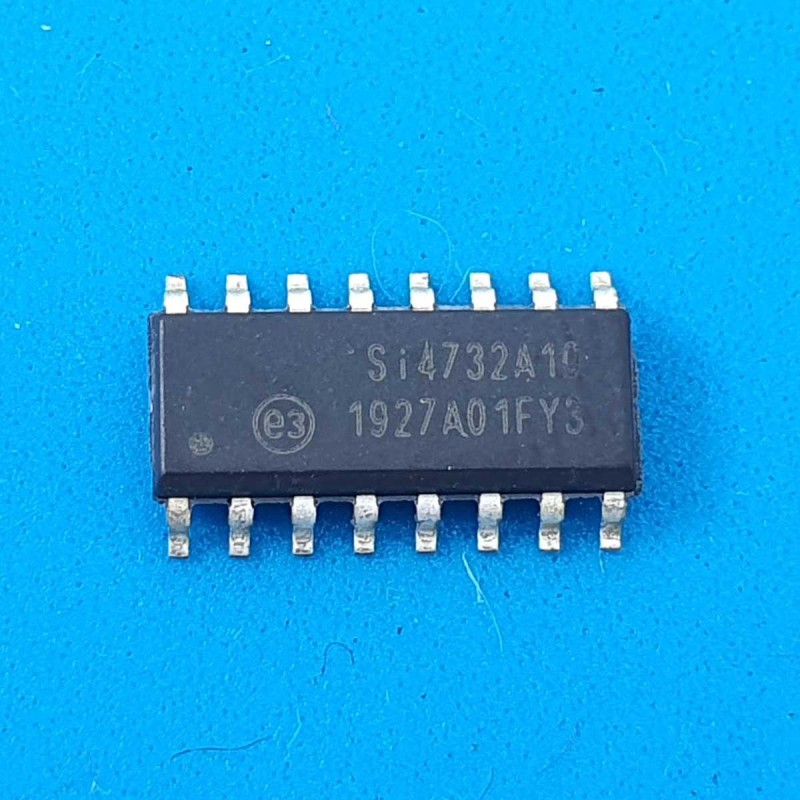

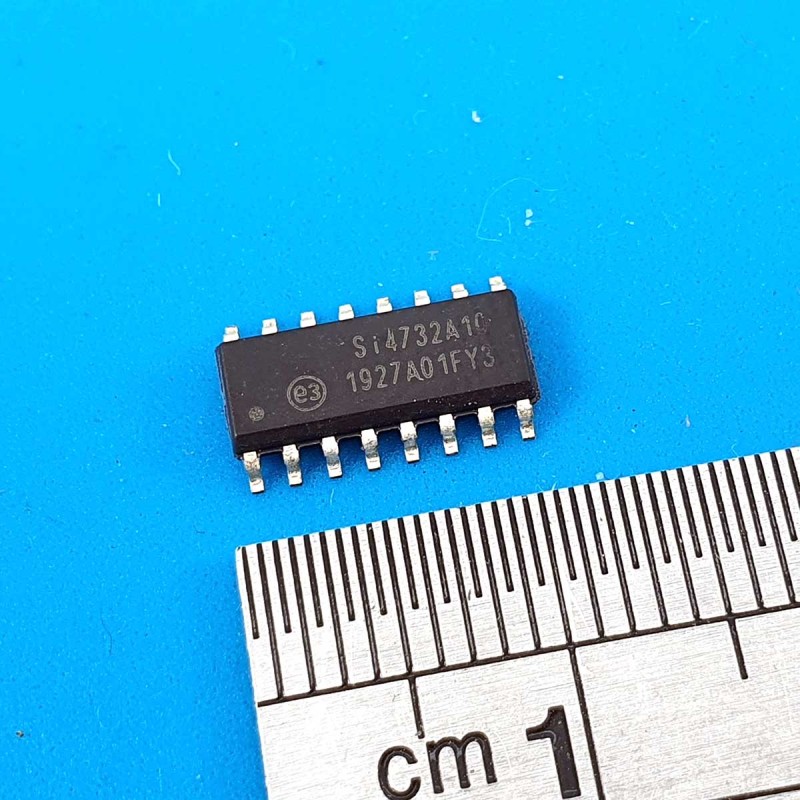

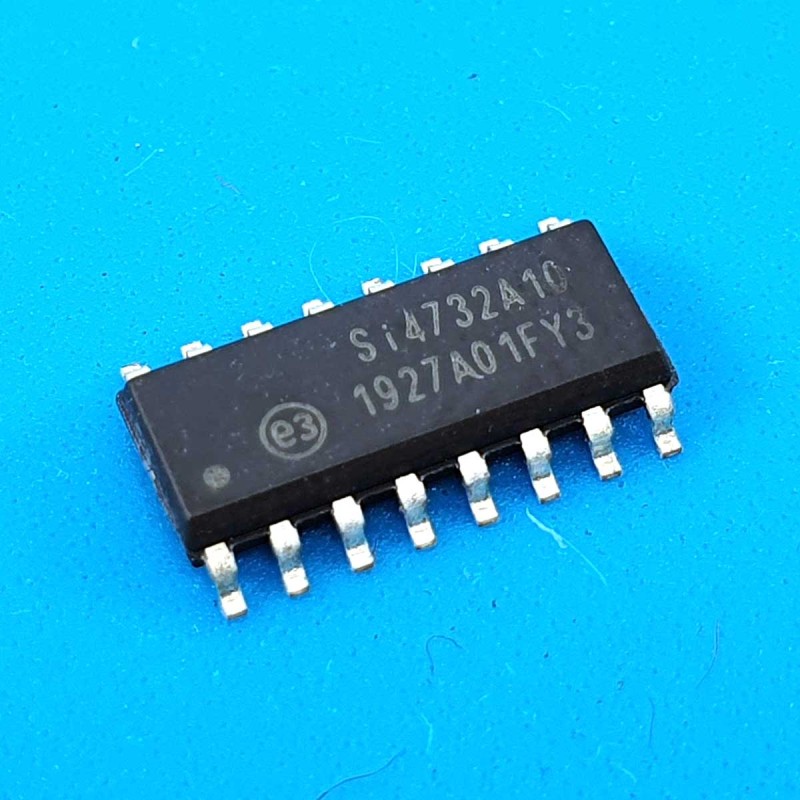

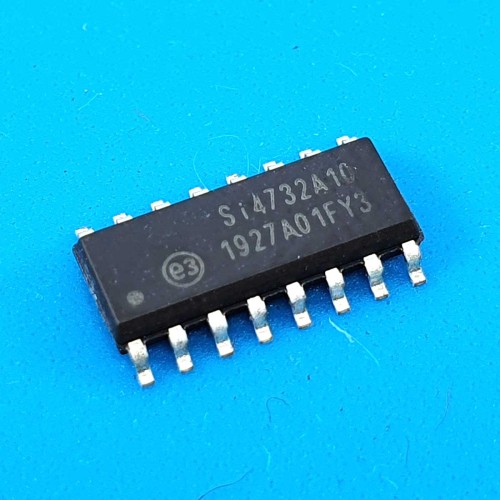

Chip Radio SW AM FM LW Si4732 A10

Chip Si4732 A10 buatan Silicon Lab ini bisa digunakan untuk anda membuat radio stereo yang bisa menangkap siaran band AM, SW, dan FM dengan kemampuan SSB.

• Protokol I2C 3.3V
• Tegangan kerja dan logic 3.3V
• Worldwide FM band support (64–108 MHz)
• Worldwide AM band support (520–1710 kHz)
• SW band support (2.3–26.1 MHz)
• LW band support (153–279 kHz)
• Excellent real-world performance with integrated AM/FM/SW/LW/RDS
• Integrated VCO
• Advanced AM/FM seek tuning
• Automatic frequency control (AFC)
• Automatic gain control (AGC)
• Digital FM stereo decoder
• Programmable de-emphasis
• Advanced Audio Processing
• Seven selectable AM channel filters
• AM/FM/SW/LW digital tuning
• EN55020 compliant
• No manual alignment necessary
• Programmable reference clock
• Adjustable soft mute control
• RDS/RBDS processor
• Digital audio out
• 2-wire and 3-wire control interface
• Integrated LDO regulator
• Wide range of ferrite loop sticks and air loop antennas
