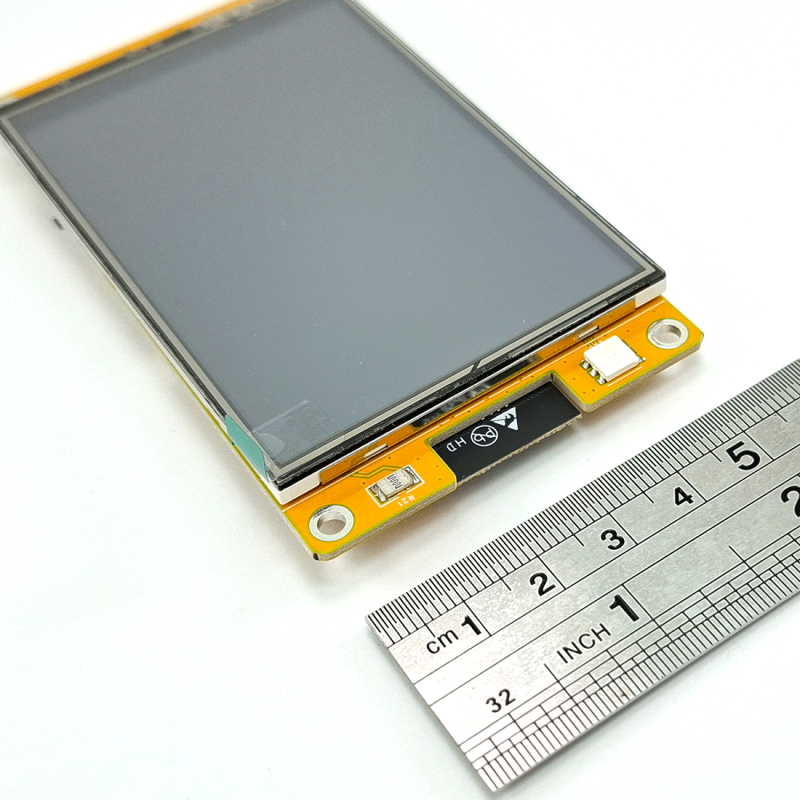

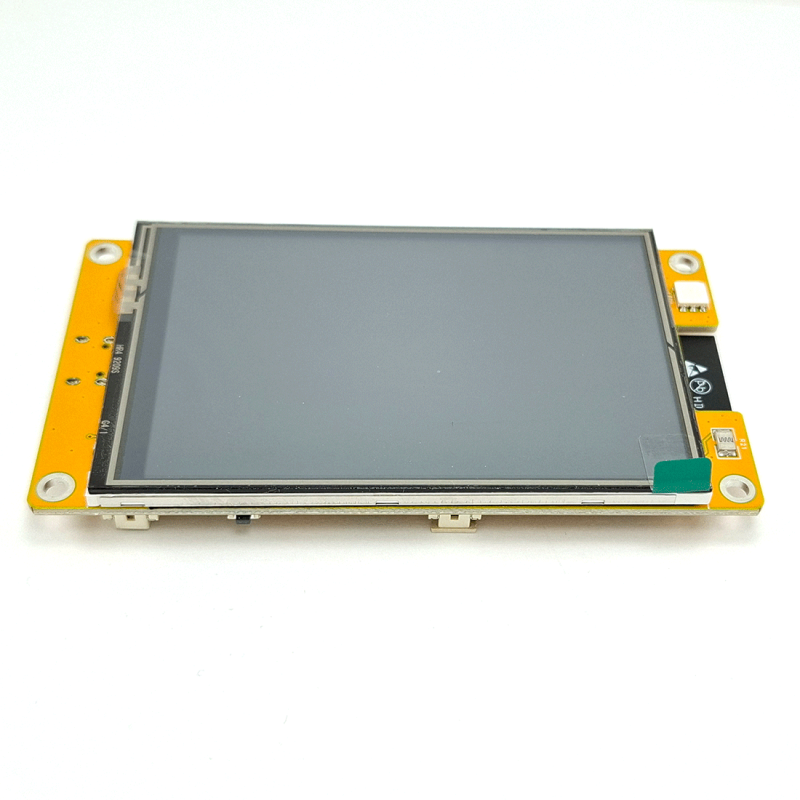

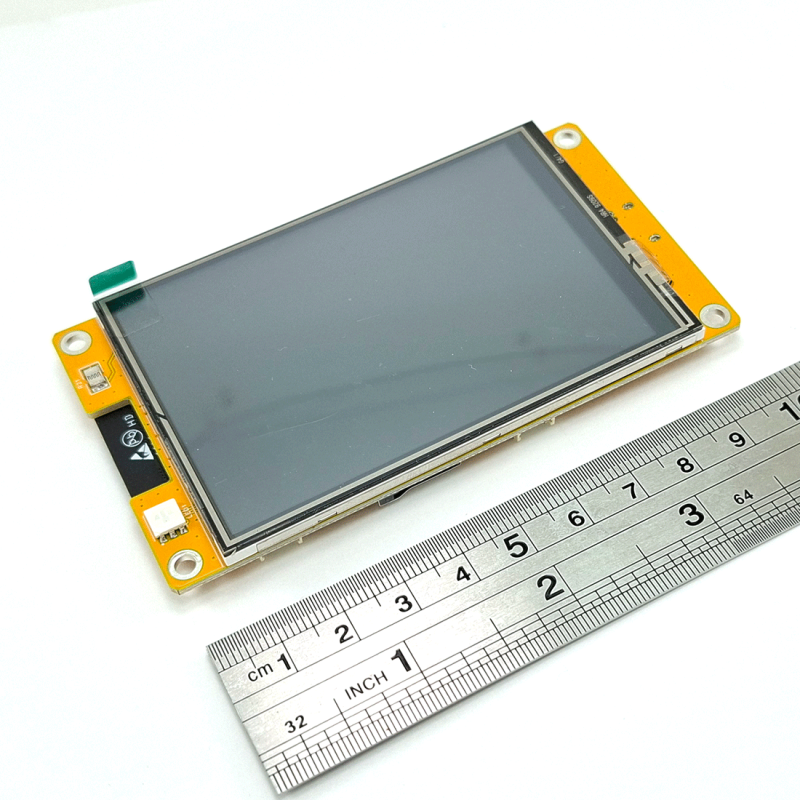

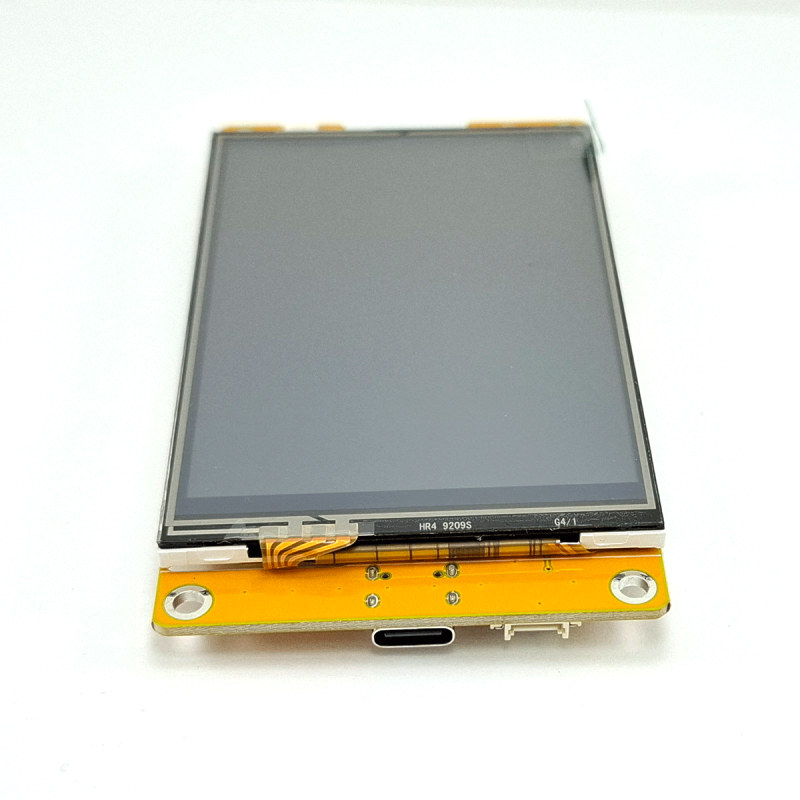

ESP32 TFT 3.5 Inch Wifi Bluetooth CYD Display dengan Touch Screen

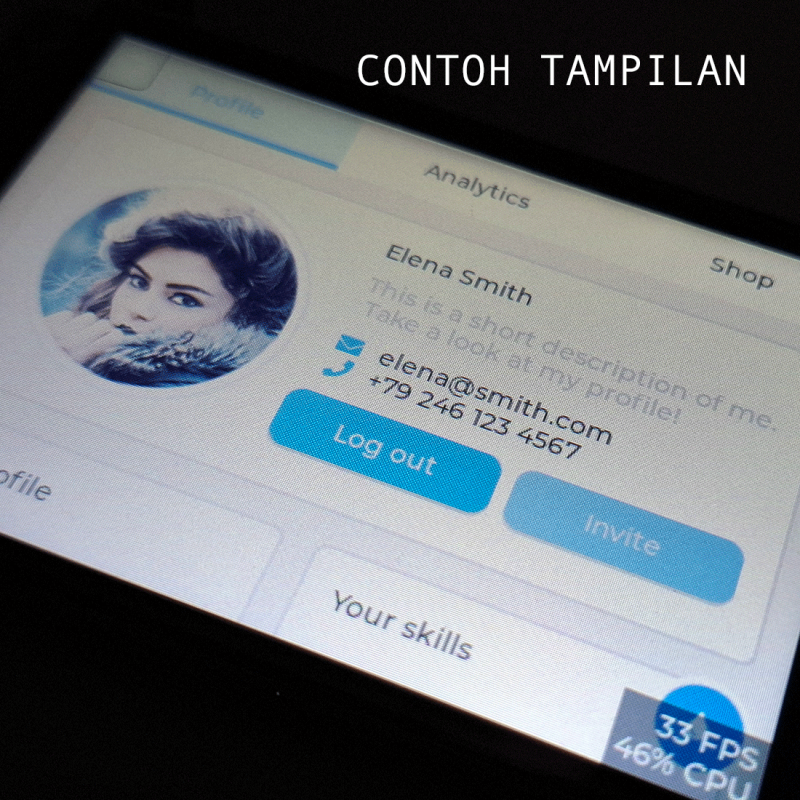

Modul ESP32 ini menggabungkan ESP32 dengan layar display TFT 3.5 inch beserta touchscreen, sehingga project yang membutuhkan display data yang menarik menggunakan ESP32 menjadi sangat mudah dilakukan, apalagi di bantu dengan LVGL yang sangat membantu mempermudah desain pada layar.

Features:

• Integrated ESP32 dual-core processor with WiFi + Bluetooth BLE support
• 3.5-inch TFT LCD display dengan resolusi 480x320 (ST7796 platform ILI9xxxx)
• Panel layar sentuh Resistive
• Kompatibel dengan Arduino IDE, Micro Python, and ESP-IDF, ESPHOME

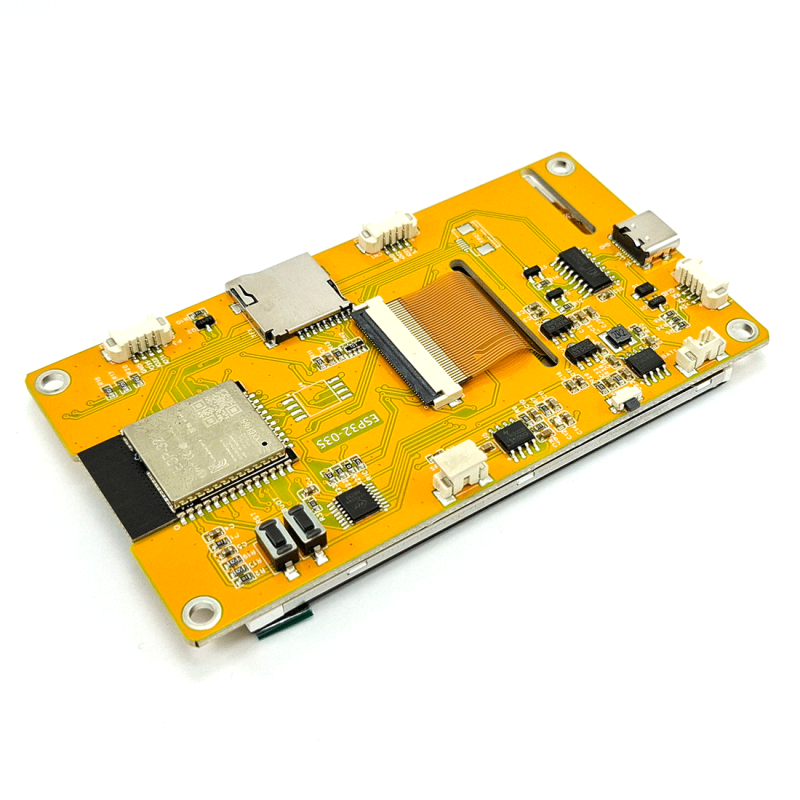

• Built-in microSD card slot
• Dilengkapi dengan soket untuk external extended IO, UART, SPI

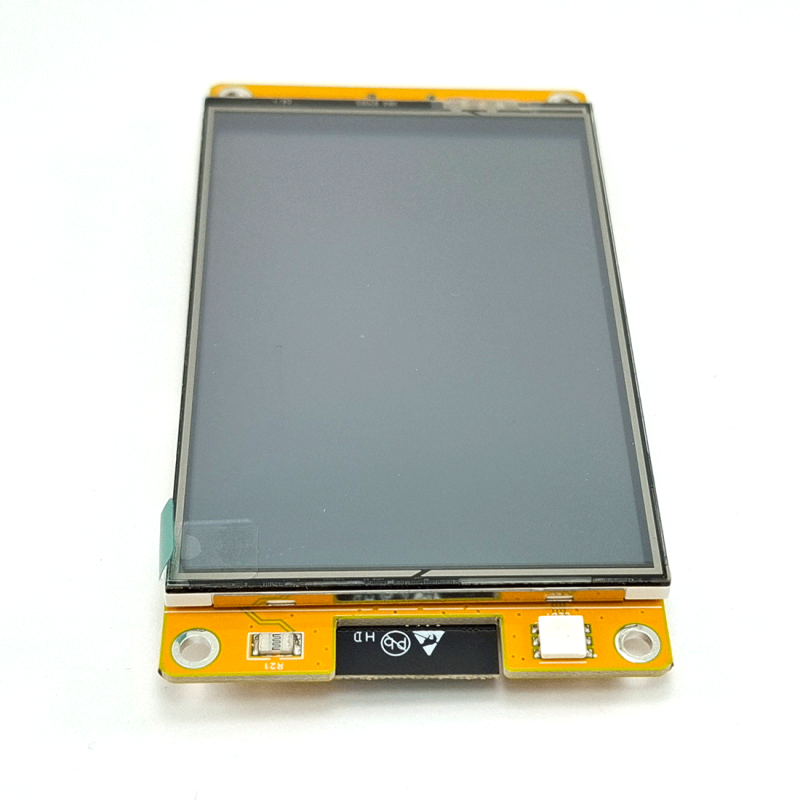

• On board sensor cahaya dan led RGB
• Ideal untuk IoT projects, HMI interfaces, smart devices, and DIY applications

Specifications:

• Model: ESP32-3248S035C
• Microcontroller: ESP32 (dual-core, 32-bit)
• Display Size: 3.5 inch TFT LCD
• Resolution: 480 x 320 pixels
• Driver IC: ST7796
• Touch Type: Resistive Touch Panel
• Connectivity: WiFi 802.11 b/g/n, Bluetooth 4.2 BR/EDR + BLE
• Storage: microSD card slot (supports FAT/FAT32)
• Programming Support: Arduino IDE, Micro Python, ESP-IDF, ESPHOME, LVGL
• Power Supply: 5V via USB or external input

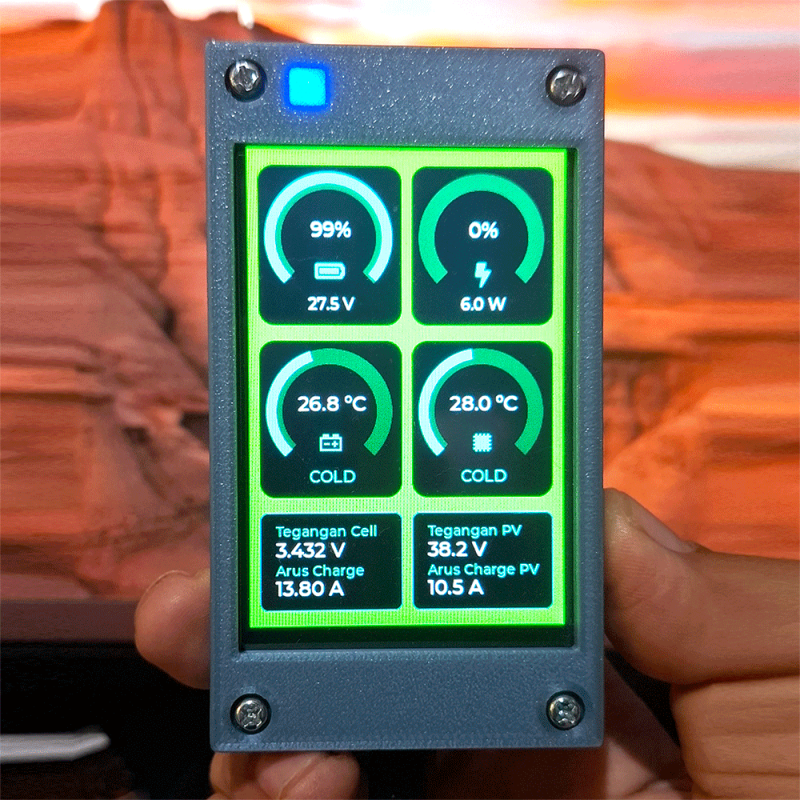

• Applications: IoT dashboards, smart home control, HMI interfaces, portable devices, DIY electronics

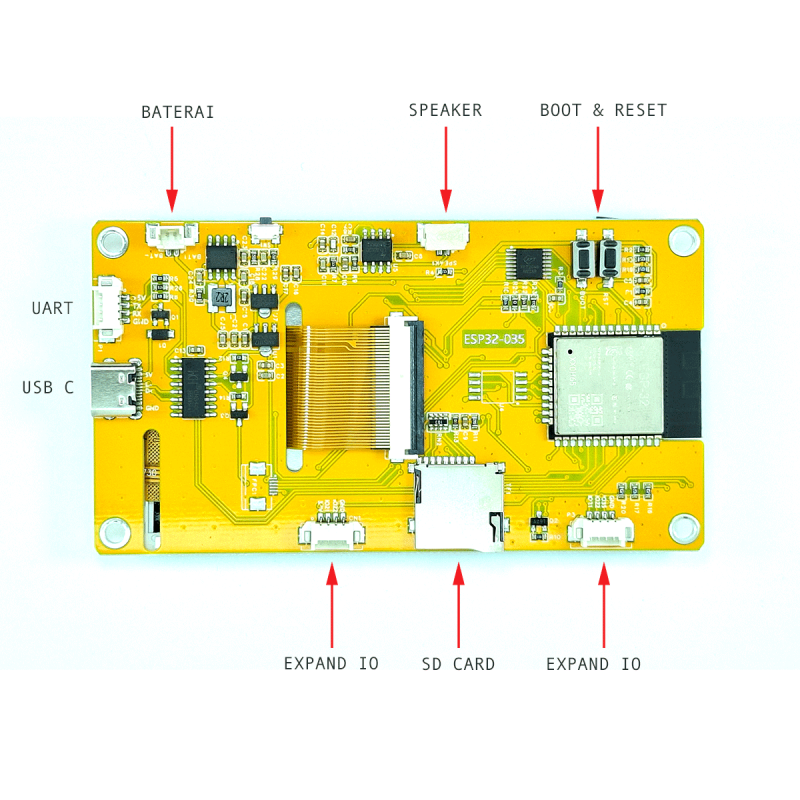

PINOUT

• Display SPI : CS GPIO15, DC GPIO2, Data Rate 20Mhz
• Backlight PWM : GPIO27
• RGB Led : Red GPIO4, Green GPIO 17, Blue GPIO16
